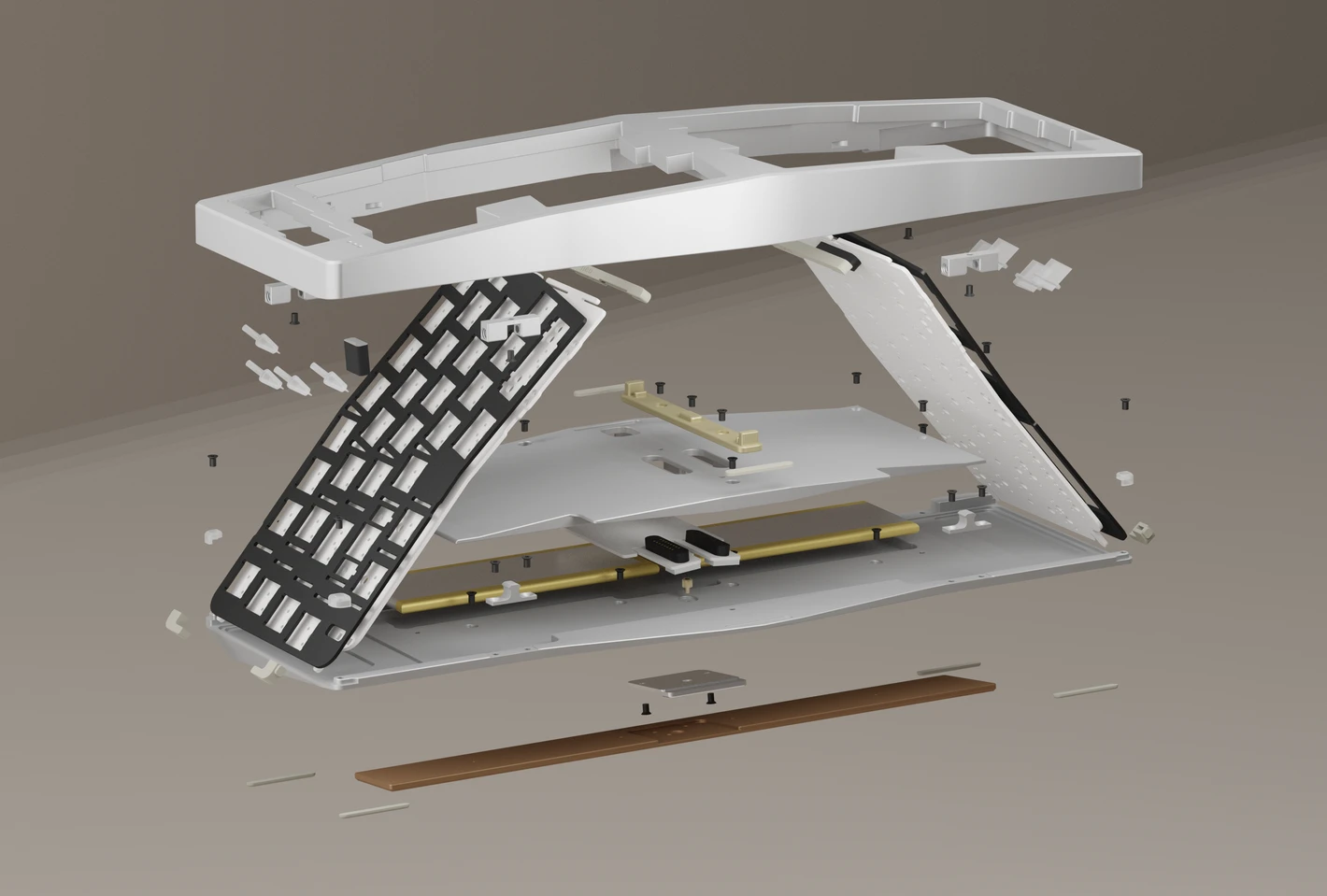

Neo Ergo Parts

Selective PCBs

We selected the 1.6mm PCB without flex cut to achieve a louder and fuller sound profile

• All PCBs are QMK-based, VIA supported

• Tri-mode Hotswap PCB (Non-flex Cut)
  • 1.6mm thick
  • Support USB-C, Bluetooth, and 2.4GHz connection
  • NKRO
  • Polling rate: 1000Hz in wired and 2.4Ghz mode; 125Hz in BT mode
  • NO Per-key RGB
• Wired Hotswap PCB (Non-flex Cut)
  • 1.6mm thick
  • USB-C connection only
  • NKRO
  • Polling rate: 1000Hz
  • NO Per-key RGB
• Solder PCB (Non-flex Cut)
  • 1.6mm thick
  • USB-C connection only
  • NKRO
  • Polling rate: 1000Hz
  • NO Per-key RGB

Plates with distinctive characters

• Hard ———————————————> Soft:

  Carbon Fiber > Aluminum > FR4 > POM > PC > PP

• Clack ———————————————> Thock:

  Aluminum > Carbon Fiber > FR4 > POM > PC > PP

Extra Parts

• 9 Diffusers
• Gaskets (4 short + 2 long)
• 1 Case corner protectors
• Rubber feet (6 white and 6 black)
